Our Industrial Products

Linear Actuator For Industrial Automation System

We offer different models and types Linear Electric Actuator for various customized Automation solutions, The Linear electric Actuators modals are customized by varied stroke length, Load capacity, operating speed, protection class and operating voltage

Protection Class:

IP rating of the actuator, Defines the Protection from dust/mist or water droplets, here in our case, we provide, IP43,IP54,IP65.
column actuator

column actuator
linear actuators
Slider drive linear actuator

Linear Actuator with External Stroke Length Control Sensor​

In this model we can Adjusting stroke length of Linear Actuator as per requirement

Externally through external limit sensor



Linear actuators are widely used for precise linear motion, often equipped with integrated length control systems to ensure accuracy. However, for greater flexibility and adaptability, linear actuators with external stroke length control sensors have become popular. These external sensors can be customized, retrofitted, and positioned strategically to provide real-time data feedback, offering enhanced control and monitoring capabilities for various applications.

Linear Actuator with External Stroke Length Control Sensor​​

System Alerts are given predominantly using, SMS, Missed Call, and e-mail Alerts for different types of event Inputs like, Power-Failure, Temperature,Humidity etc.

Power Failure
Power failure alert systems
SMS Alerts

Some Standard Models:

  • Power Failure Alert system
  • Temperature Alert system
  • Humidity Alert System,
  • Fuel/Gas Leak Alert System,
  • Door Open/Close Alert System,
  • Float level Alert system etc.

Features:

  • System Input – According to Customer requirement To know the status of the item – Power failure, Machine Stopped, Door Open/Close, Temperature Alert etc.
  • Output – Send Alerts to more than 5 Numbers.
  • ABS Sturdy Plastic Enclosure.
  • Easy Installation.
  • Less power consumption.
  • With Fuse Engaged Protection.
  • One Year warranty.
  • Also Available with In-built Battery Backup for Emergency and Remote area Operation

Specifications:

Material             : ABS Sturdy Plastic Case.

Size/Dimension : 160*250*115 mm( Unit varies, As per the Application).

Input voltage     : 0-240V AC.

Alerts                 : SMS Alert ,Missed call alert ,e-mail alert.

Indication          : 7 Segment LED display.

Protection         : Fuse engaged protection.

Accuracy          : ± 0.5% OF FSD (±1°C) , ± 5% Rh (at 25′ C, 60% Rh

Operating Temperature : Temperature and Humidity Sensors.

{ 0-400°C, 0- 60°C, Operating Humidity Range: 30-90% Rh, 0- 100%Rh}Storable

 Temperature Range : -30°C to 85°C Storable Humidity Range Within 95% Rh

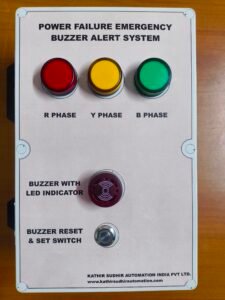

Power Failure Alert System:
Alerts the system and sends SMS, If there is Power failure in the Installed system.

If any of the phase will shut down, our control unit will send “particular phase OFF” automatic message and missed call to specified number. (eg; – phase 1 power OFF).
If any of the phase power will ON, our control unit will send “particular phase ON” automatic message and missed call to specified number. (eg;- phase 1 power ON).
Temperature & Humidity Alert System:
This Device Sends the SMS Alert ( for about 5 Persons) or Missed Call alert, if there is Varying in Set Temperature and Humidity in the Installed System.

Advantages:

  • Message content and contact numbers are fixed.
  • Cellular Network ensures efficient SMS delivery.
  • SMS alert send max.
  • 5 contact numbers to message.
  • High Efficiency and Study case with Easy Installation.
  • Low Power Consumption.
Vibratory feeder
digital
digital
digital

Our Models:
Analog and Digital:
Analog Vibratory Feeder Controller controls the vibration of feeder by controlling the input voltage by varying the knob to increase/decrease in voltage.

Digital Vibratory Feeder Controller:

This model displays the varying voltage with a 7-segment LED indicating display, it has push button operation for varying the output voltage.

Specifications:

  • Input                :  0-240V AC, Single Phase.
  • Output             :  0-90V DC / 0-110V AC.
  • Current Rating:  3A-6A.
  • Display            :  7 segment- 3 Digits (Digital Model only).
  • Weight             : 0.51 kg.
  • Size                  : 90*135*90

Features:

Sturdy High grade case.
Installation is easy.
Low Power Consumption.
High Efficiency, Easy installation with clamping.
ABS Sturdy Plastic Case.
Fuse engaged Protection for Input and Output terminal port.
Trip and Engaged Option is available for Sensor Operation.


Applications :Vibratory feeder controller is used to feed the material to processing stages through Assembly lines, conveyor belts in various Industries including.

Automotive Sector.

  • Electronic Industries and Manufacturing lines.
  • Food and Beverages Sectors.
  • FMCG’s, Packaging, Metal, Glass, Foundry, Construction. Industries etc;
  • Medical & Pharmaceutical Sectors.
  • Recycling, Pulp and Paper Industries.
  • Plastic sector. Packing and forwarding.
  • Furnaces and heat treatment.
  • Chemical and fertilizer powder feeding.

Wall Mounting Vibratory Feeder Controller

Vibratory
Linear actuators are widely used for precise linear motion, often equipped with integrated length control systems to ensure accuracy. However, for greater flexibility and adaptability, linear actuators with external stroke length control sensors have become popular. These external sensors can be customized, retrofitted, and positioned strategically to provide real-time data feedback, offering enhanced control and monitoring capabilities for various applications.
Linear actuators are widely used for precise linear motion, often equipped with integrated length control systems to ensure accuracy. However, for greater flexibility and adaptability, linear actuators with external stroke length control sensors have become popular. These external sensors can be customized, retrofitted, and positioned strategically to provide real-time data feedback, offering enhanced control and monitoring capabilities for various applications.
Linear actuators are widely used for precise linear motion, often equipped with integrated length control systems to ensure accuracy. However, for greater flexibility and adaptability, linear actuators with external stroke length control sensors have become popular. These external sensors can be customized, retrofitted, and positioned strategically to provide real-time data feedback, offering enhanced control and monitoring capabilities for various applications.

Our wall-mounted vibratory feeder controller revolutionizes the way you manage and fine-tune the output voltage for optimal performance. With a sleek design and user-friendly interface, this model offers unparalleled control and visibility into your operations.

7-Segment LED Display: Experience real-time voltage monitoring with absolute clarity. The 7-segment LED display provides a visual representation of the varying voltage, allowing you to make precise adjustments with ease.



Specifications:

  • Input                :  0-240V AC, Single Phase.
  • Output             :  0-90V DC / 0-110V AC.
  • Current Rating:  3A-6A.
  • Display            :  7 segment- 3 Digits (Digital Model only).
  • Size                 :  100*175*80

An Inclinometer is a device used to measure the magnitude of the inclination angle or deformation of any structure.
Digital Inclinometer shows the Angle reading in X and Y direction(variation angle on: Right, left,Top,bottom).
Inclinometer is used to measure the slope gradient, during activities like tunneling,excavation and de-watering etc;
Our Device alerts the system, if the system exceeds the Set Angle.

Navigating Angles
Digital Inclinometers
Digital Angle display

Features:

  • Compact in Size.
  • Input Voltage : 12V DC.
  • Current rating : <500mA.
  • Angle Indication : 7 Segment LED Display.
  • Alert : Buzzer/Siren.
  • Sensor Used : GY-61.
  • Accuracy : +/- 2 degree.

Applications:

  • In all types of Industries and Manufacturing sectors including;
  • Agricultural and Industrial vehicle tilt monitoring and particularly in Mine vehicles.
  • Irrigation vehicles.
  • Medical Sector.
  • Food and Beverages Sectors.
  • Position feedback for solar tracking systems.
  • Platform leveling and monitoring.
  • GPS compensation etc;

Linear Actuator with Integrated Length Control System

*Linear Actuator with Integrated length control system measures and Display the length of actual position to projected position of an actuator.

*Integrated length control system comprised of below;

Linear Actuator
Linear Actuator
Linear Actuator


Linear Actuator:

Linear Actuator of varying Length from 50mm to 600mm,

As per Customer application based on their requirement.

Linear Position Displacement Sensor:

* The Stroke-Length varies with respect to the aligned Actuator used in the Control System.

*Operating Voltage: 10 V

*Resistance: 5K ohm.

Process Indicator:

* Input : 0-10V dc/0-20mA/4-20mA.

* Supply : 190~265 VAC.

* Indication : 7 Segments.

* Range : 9.999/99.99/999.9/9999(Selectable).

Applications:

* Expansion of objects-Stroke Length can be measured from initial position to the target position with Process indicator equipment.

* When flat polished metal component is used, then wrapping in glass substrate can be measured.

*Gaps and change in gaps.

* Vibrations-In Industries, Sensor is used as application to resist the shock and vibration.

*Expansion of objects.

Valve Controller used to monitor upstream and downstream pressure from Pilot Valve.
automation

valve controller
valve controller

Features:

It is the standard for improving the manufacturing productivity.
It identifies the overall time for manufacturing that is truly productive.
An OEE score of 100% shows that, manufacturing only good parts as fast as possible, without any stop time
Applications:

  • Valve controller mostly used as final control element for handling in Fluid methods.
  • Valve controller elements is used for controlling the process in following process industries like;
  • Oil& Gas Industries.
  • Refinery.
  • Petrochemical Industries.
  • Chemical Industries.
  • Pharmaeceutical etc;

A Signal Converter is a device that converts signals from sensors to industrial current signals, converts analog input signals to analog output signals, normalizes signals, or isolates signals.
The electronic signals that are detected by a detector are different in nature because of differences in the data that was measured (e.g., temperatures, pressures, and voltages).
This makes it difficult to input the data directly into control circuits. Therefore, it is necessary to covert or normalize the data to a signal form that is easy to use.

​​Signal Convertor
Signal convertor

Application:
Convert the NPN signal to PNP signal.

Features:

  • Compact size.
  • Easy installation.
  • Low weight, Sturdy case, High accuracy.

Advantages:

  • If sensors are used in equipment or plant control systems, signal converters like our NPN to PNP converters will be the most convenient product .
  • If sensors are used in equipment or plant control systems, signal converters like our NPN to PNP converters will be the most convenient product.
  • These compact modules and signal converters are designed to convert NPN signals to PNP or a PNP signals to NPN.
  • Having these sensor signal converter modules and NPN to PNP converters readily available eliminates the last minute problems that you encounter when your controller I/O and the type of sensor that you are using have a mismatched signal.
  • When repairing older equipment, fixing plant control systems, maintaining existing systems, or trying to match a new controller with older sensors, these conversion modules can be readily used

​​Sequential Timer

Sequential timer is used to program and control the timer of Output devices to operate it sequentially as per the user program.

Sequential timer is useful for industrial applications where a series of industrial devices are required to be run in a sequential manner.

​​Sequential Timer

Features:

We have designed this product with proper noise cancellation, short-circuit protection and reliable with 230V supply. We toggle each channel with pre-set time for ON/OFF.
Insist proper quality to provide reliable function. Our Product is programmed for seamless functions and finishing.
7 segment LED Display.
Applications:

  • Sequential timer is used as an Industrial devices which is required to run as a timer in sequential manner.
  • Sequential Timer is used in various type in industrial application like;
  • Food Processing Industries.
  • Plastic Industries.
  • Chemical Industries.
  • Pharmaceutic Industries etc;

MEANWELL: SMPS-LRS-150-12

LRS15012-1-
smps
LRS15012_2

Specifications:

Output Voltage   : 12 V.
Output Current   : 12.5 A.
Type                    : Enclosed Type.
Approx. Wattage : 150W.
Features              : Standard.
Series                  : LRS(Reliable).
Mechanical Form : Enclosed.
Warranty              : 3 Years Warranty.
IP Level                : Non-Waterproof.
Input Voltage       : 115V/230V by Switch.
Load Regulated   : Regulated.
Dimension            : 159mm*97mm*30mm(L*W*H).

Features:

  • No load power consumption <0.5W for 150W; <0.
  • 75W for 200W/350W.
  • AC Input selectable by Switch.
  • Withstand 300VAC Surge Input for 5 seconds.
  • Ultra compact and 1U low profile.
  • Withstand 5G vibration test.
  • High operating temperature up to 70 degree Celsius.
  • Protections: Short circuit/Overload/Over-Voltage/Over-temp.

Advantages:

  • Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W).
  • Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances(150W).
  • Operating altitude up to 5000 meters.
  • LED indicator for power on.
  • High efficiency, long life and high reliability.
  • Low cost.
  • 3 years warranty.

The Special Purpose Machines are generally product specific & they are required to be designed & developed for each specific requirement.
We provide innovative special purpose solutions for all industries, with the help of our core team who possess creativity, innovation and knowledge in all areas of the machine building process like machine control and complete machine assembly.
Our range of SPM Controllers, some of them includes;

Scissor Lift Controller System.

Length Control Cutting Machine Controller System.

Molding & Polishing Control System.

Automatic Valve Control System etc;

Special Purpose
PCb board

We provide innovative special purpose solutions for all industries, with the help of our core team who possess creativity, innovation and knowledge in all areas of the machine building process like machine control and complete machine assembly.

spm machine india
digital

Quality

We are one of the leading service provider of Embedded Systems

Innovation

Our Expertise ensures seamless designs with proper interoperability of different devices.

Technology

Our Engineers are equipped with relavant knowledge and deliver the parts of your design requirement with the complete solution and implementation.

Frequently Asked Questions

An Alert System is a communication tool that sends real-time notifications about important events, emergencies or critical information.

A vibratory feeder controller uses an electromagnetic drive to generate vibrations, which are controlled by adjusting the frequency and amplitude to suit the specific requirements of the application.

A digital inclinometer is a device used to measure the angle or slope of an object or surface with high precision using digital technology.

It is a device that converts rotational motion into linear motion and is equipped with a control system to regulate its length.

Industrial engineering is used in a wide range of industries, including manufacturing, healthcare, transportation, logistics, and energy.
